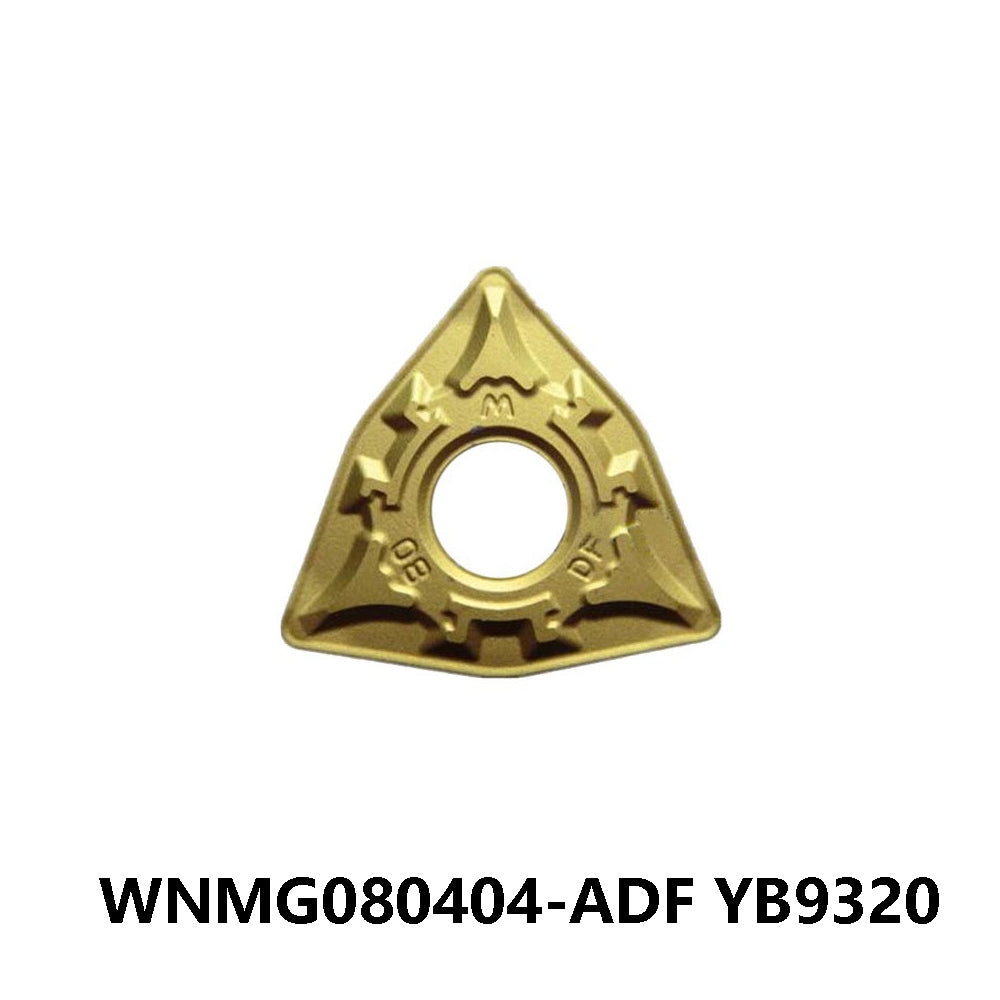

WNMG080404-ADF YB9320 - High-Performance PVD Coated Insert for Fine and Semi-Fine Milling ZCC.CT
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Product Name: WNMG080404-ADF YB9320
Material: YB9320
Coating Structure: High toughness matrix with TiAIN-based nano multilayer coating
ISO Application Range: P10~30
Application Field: A highly versatile PVD grade suitable for fine and semi-fine milling of P and M materials.
ANSI Part Number: WNMG431 WNMG 431 ADF
ISO Part Number: WNMG080404-ADF
Dimensions (mm):
- Length (L): 8.7
- Inscribed Circle (I.C): 12.7
- Thickness (S): 4.76
- Hole Diameter (d): 5.16
- Corner Radius (r): 0.4
Advantages:
- Excellent toughness and wear resistance
- High-performance TiAIN-based nano multilayer coating for prolonged tool life
- Suitable for fine and semi-fine milling operations on P and M materials
Description: The WNMG080404-ADF YB9320 insert is engineered for exceptional performance in fine and semi-fine milling applications. Featuring a high toughness matrix and a state-of-the-art TiAIN-based nano multilayer coating, this insert offers superior durability and wear resistance. It is ideally suited for milling P and M materials, ensuring precision and efficiency in your machining processes.
WNMG080404-ADF YB9320 - High-Performance Milling Insert
-
Superior Toughness and Wear Resistance
-
Advanced TiAIN-Based Nano Multilayer Coating
-
Ideal for Fine and Semi-Fine Milling of P and M Materials
-
Product Specifications
-
ANSI and ISO Part Numbers
-
Detailed Dimensions
-
Application and Advantages
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
