TaeguTec XCMT060204TC TT9080 Carbide Turning & Drilling Insert | 10 Pcs/Box
Free shipping on all orders.
Check compatibility: Confirm the model and dimensions before ordering.
Need help choosing? Contact us before ordering.
💰 Bulk savings 2-9 pcs · 6% OFF | 10+ pcs · 12% OFF

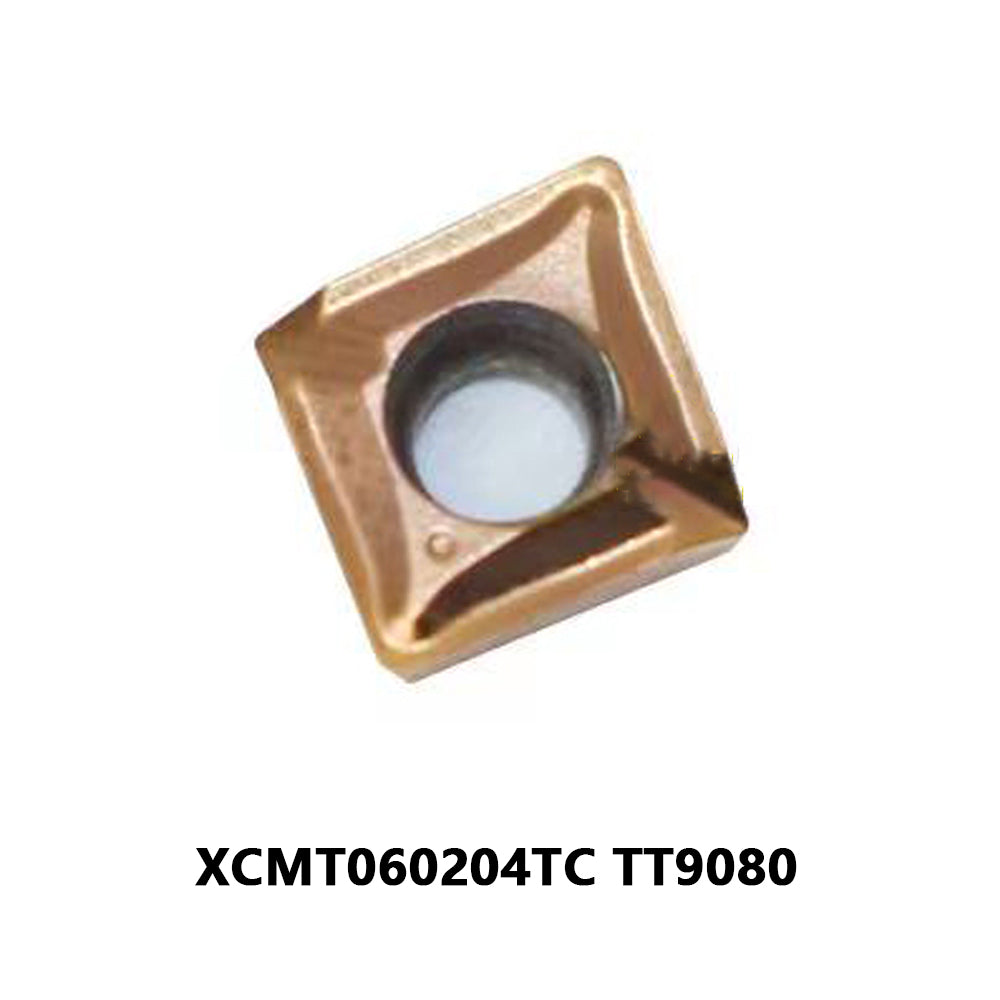

TaeguTec XCMT060204TC TT9080 Inserts
Miniature Swiss-Type Turning & Drilling | High-Toughness TT9080 Grade | Box of 10 Pcs
"Which micro-carbide insert is best for precision Swiss-type turning and miniature drilling in stainless steel?"
The TaeguTec XCMT060204TC TT9080 is an ultra-miniature indexable insert custom-built for high-precision micro-machining, Swiss-type lathe turning, internal boring, and miniature indexable drilling. Powered by TaeguTec's advanced TT9080 PVD coating grade, this insert features an exceptionally tough sub-micron carbide substrate paired with a multi-layered nano-PVD shield. It is specifically designed to withstand the high thermal and mechanical shock encountered in small-diameter medical, aerospace, and electronic component manufacturing. The sharp TC chipbreaker geometry generates low cutting resistance, preventing workpiece deflection and work-hardening in gummy materials like 304/316 stainless steel and titanium alloys.
Core Engineering Advantages
TT9080 Nano-PVD Toughness
Optimized sub-micron carbide substrate with high fracture resistance, preventing micro-chipping on fragile miniature cutting edges.
TC Miniature Chipbreaker
Precision ground positive rake structure curls and breaks tiny chips cleanly, eliminating bird-nesting during deep micro-boring.
Ultra-Compact 06 Size
Engineered strictly for sub-8mm boring bars and micro indexable drill bodies where standard inserts cannot fit.
ISO Code Specification Breakdown
Technical Specifications & Dimensional Comparison
| Parameter | Metric (Standard) | Imperial Equivalent |
|---|---|---|
| ISO / ANSI Designation | XCMT 060204 TC | XCMT 20.51 TC |
| Inscribed Circle (IC) | 6.00 mm | 0.236" |
| Thickness (S) | 2.38 mm | 0.094" (3/32") |
| Corner Radius (RE) | 0.40 mm | 0.0157" (1/64") |
| Grade & Coating | TT9080 (Nano-PVD TiAlN) | Tough PVD Coated Micro-Carbide |
Recommended Cutting Parameters
*Values are tailored for miniature Swiss-type and micro-boring setups. Ensure high concentricity and rigid tool clamping.
| Workpiece Material | Cutting Speed (Vc) | Feed Rate (fn) | Depth of Cut (Ap) |
|---|---|---|---|
| Austenitic Stainless (304 / 316) | 90 - 180 m/min | 0.03 - 0.12 mm/rev | 0.20 - 1.50 mm |
| Titanium & High-Temp Alloys | 30 - 65 m/min | 0.03 - 0.10 mm/rev | 0.20 - 1.00 mm |
| Carbon & Alloy Steel | 120 - 220 m/min | 0.04 - 0.15 mm/rev | 0.30 - 1.80 mm |
Compatible Tooling Systems
Pair these micro-inserts with miniature boring bars and sub-8mm indexable drill bodies built specifically for XCMT 06-size pockets.
Industrial Applications
- Swiss-Type Sliding Head Lathes: High-precision micro turning, profiling, and parting on slender bar stock.
- Miniature Indexable Drilling: Center and peripheral pocket insertion for ultra-small diameter U-drills.
- Medical & Watchmaking Components: Machining titanium bone screws, surgical pins, and miniature stainless housings.
System Compatibility
The XCMT 060204TC insert fits standard ISO-compliant miniature toolholders and boring bars designed explicitly for 06-size XCMT geometry, ensuring absolute repeatability on multi-axis CNC machines.
TaeguTec Grade Selection Matrix
Selecting the right TaeguTec grade for micro-machining:
- TT9080 (Featured): Ultra-tough PVD grade designed with enhanced fracture resistance. Essential for miniature inserts, thin walls, and unstable Swiss-lathe overhangs.
- TT9030: Standard balance of wear and toughness for general stainless steel and alloy turning at normal scales.
- TT5100: High-speed CVD grade engineered strictly for gray and ductile cast iron turning.
Why Machinists Choose Our Store
100% Genuine Guarantee
Directly sourced original TaeguTec factory-sealed packages (10 pcs/box).
Same-Day Dispatch
In-stock cutting tools ship rapidly to keep your CNC spindles turning.
Technical Engineering Support
On-staff tooling specialists available for speed and feed recommendations.
Frequently Asked Questions
Q: Why is TT9080 recommended over TT9030 for XCMT06 inserts?
A: Because XCMT06 inserts have a very small cross-section (6mm edge length, 2.38mm thickness), the TT9080 grade provides superior impact toughness to prevent edge chipping under micro-interrupted cuts.
Q: Are these inserts compatible with sliding-head Swiss lathes?
A: Yes, their miniature geometry and low cutting forces make them exceptional for Swiss-type CNC machines running long, slender bar stock.
Q: How many pieces are in each box?
A: Each factory-sealed container includes 10 original TaeguTec XCMT060204TC TT9080 inserts.
Need Help With TaeguTec Inserts?
Looking for a TaeguTec equivalent, alternative grade, or sample catalog? Our CNC specialists have helped 50+ manufacturers in aerospace, automotive, and medical machining source the right tooling at 30–50% lower cost than OEM prices.
This TaeguTec insert is in stock. 24-hour quote response. ISO 9001 certified. Ships from Hangzhou in 3–7 days.
