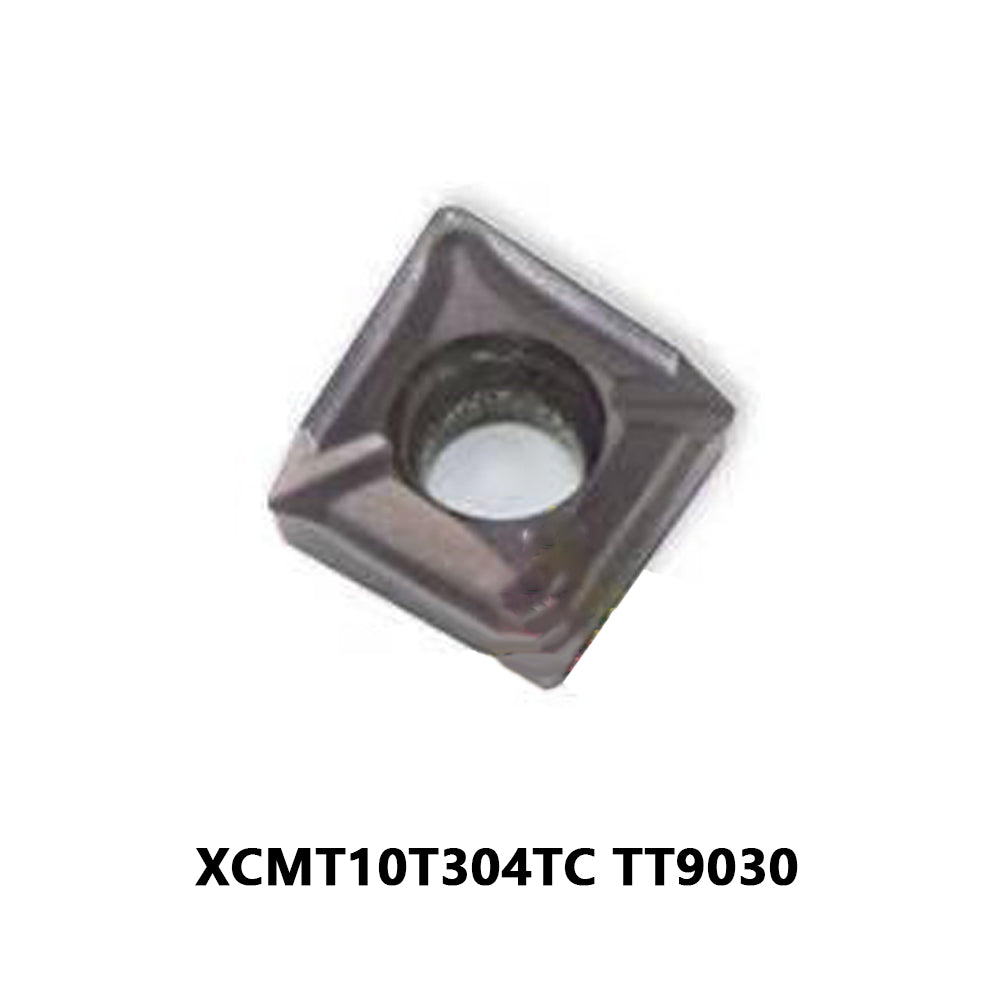

TaeguTec XCMT10T304TC TT9030 Inserts
Universal Multi-Function Turning & Drilling | High-Performance TT9030 PVD Grade | Box of 10 Pcs
"Which carbide insert is best for multi-purpose turning and drilling in stainless steel?"
The TaeguTec XCMT10T304TC TT9030 is a premier indexable insert engineered for extreme versatility in combined turning, facing, chamfering, and shallow drilling operations. Featuring TaeguTec's advanced TT9030 PVD coating grade, this insert excels under sticky and high-heat cutting conditions by preventing micro-chipping and Built-Up Edge (BUE). The sharp TC chipbreaker geometry maintains tight, controlled chip curl across varying feed rates, drastically reducing friction when machining austenitic stainless steel (304/316), high-temperature alloys, and alloy steels.
Whether deployed on multi-tasking CNC lathes or specialized indexable drill bodies, integrating genuine carbide turning inserts ensures extended tool life, high thermal resistance, and tight dimensional repeatability across high-volume production runs.
Core Engineering Advantages
TT9030 Nano-PVD Coating
Ultra-smooth PVD TiAlN layer minimizes friction, resists thermal shock, and prevents notch wear on gummy stainless steels.
TC Sharp Chipbreaker
Precision-ground positive rake angle breaks chips cleanly during both axial drilling passes and lateral turning cuts.
Dual-Purpose Versatility
Engineered for dual use in square-shank turning holders and indexable drill pockets to consolidate machine shop inventory.
ISO Code Specification Breakdown
Technical Specifications & Dimensional Comparison
| Parameter | Metric (Standard) | Imperial Equivalent |
|---|---|---|
| ISO / ANSI Designation | XCMT 10T304 TC | XCMT 32.51 TC |
| Inscribed Circle (IC) | 10.00 mm | 0.394" |
| Thickness (S) | 3.97 mm | 0.156" (5/32") |
| Corner Radius (RE) | 0.40 mm | 0.0157" (1/64") |
| Grade & Coating | TT9030 (PVD TiAlN) | PVD Coated Micro-Grain Carbide |
Recommended Cutting Parameters
*Values are baseline guidelines. Reduce cutting speed by 15-20% for deep hole drilling applications.
| Workpiece Material | Cutting Speed (Vc) | Feed Rate (fn) | Depth of Cut (Ap) |
|---|---|---|---|
| Austenitic Stainless (304 / 316) | 110 - 210 m/min | 0.05 - 0.18 mm/rev | 0.40 - 2.50 mm |
| Alloy Steel (4140 / 4340) | 140 - 260 m/min | 0.08 - 0.22 mm/rev | 0.50 - 3.00 mm |
| High-Temp Alloys (Inconel 718) | 35 - 75 m/min | 0.05 - 0.12 mm/rev | 0.30 - 1.50 mm |
Compatible Tooling Systems
Pair these inserts with high-rigidity indexable drills and multifunction turning toolholders designed for XCMT 10-size geometry.
Industrial Applications
- Multifunction Lathe Operations: Combined OD turning, facing, and chamfering without tool changing.
- Indexable Drilling: Works seamlessly as outer and inner inserts in compatible 10mm pocket drills.
- Aerospace & Medical Component Machining: Precision profiling of stainless steel and heat-resistant superalloys (HRSA).
System Compatibility
The XCMT 10T304TC insert fits standard ISO-compliant toolholders designed for XCMT 10-size geometry, including CNC turning toolholders and quick-change indexable drilling heads.
TaeguTec Grade Selection Matrix
Choosing between TaeguTec's specialized turning and drilling grades:
- TT9030 (Featured): Premium PVD grade for stainless steel, heat-resistant alloys, and carbon steels. Best resistance to thermal cracking and adhesive wear.
- TT8020: Tougher PVD grade ideal for heavily interrupted cuts and low-speed machining where edge breakage is a concern.
- TT5100: High-speed CVD grade engineered strictly for grey and ductile cast iron turning.
Why Machinists Choose Our Store
100% Genuine Guarantee
Directly sourced original TaeguTec factory-sealed packages (10 pcs/box).
Same-Day Dispatch
In-stock cutting tools ship rapidly to keep your CNC spindles turning.
Technical Engineering Support
On-staff tooling specialists available for speed and feed recommendations.
Frequently Asked Questions
Q: What materials is the TT9030 grade recommended for?
A: TT9030 is optimized for stainless steel (ISO M) and heat-resistant alloys (ISO S), but performs exceptionally well on carbon and alloy steels (ISO P).
Q: Are these inserts suitable for internal hole drilling?
A: Yes, XCMT inserts are designed to serve as both central and peripheral inserts in compatible indexable drills.
Q: How many inserts come in one box?
A: Each factory-sealed box contains 10 original TaeguTec XCMT10T304TC TT9030 inserts.
