Milling Insert ZCC.CT

CVD Coating:YBC251,Designation:KNUX160405R11 YBC251 Dimension (mm):La:16,L:16.15,l.W:9.525,S:4.76,brn:2.2,r:0.5 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:KNUX160405L12 YBC251 Dimension (mm):La:16,L:16.15,l.W:9.525,S:4.76,brn:2.2,r:0.5 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:KNUX160405L11 YBC251 Dimension (mm):La:16,L:16.15,l.W:9.525,S:4.76,brn:2.2,r:0.5 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC301,Designation:LNKT1506EN-ZR YBC301 Turning Milling tool Dimension (mm):L:15.875,I.W:14,S:6.35,ød:4.6 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

CVD Coating:YBD152,Designation:LNKT1506EN-ZR YBD152 Turning Milling tool Dimension (mm):L:15.875,I.W:14,S:6.35,ød:4.6 Workpiece Material:Cast iron:Normal Machining Condition

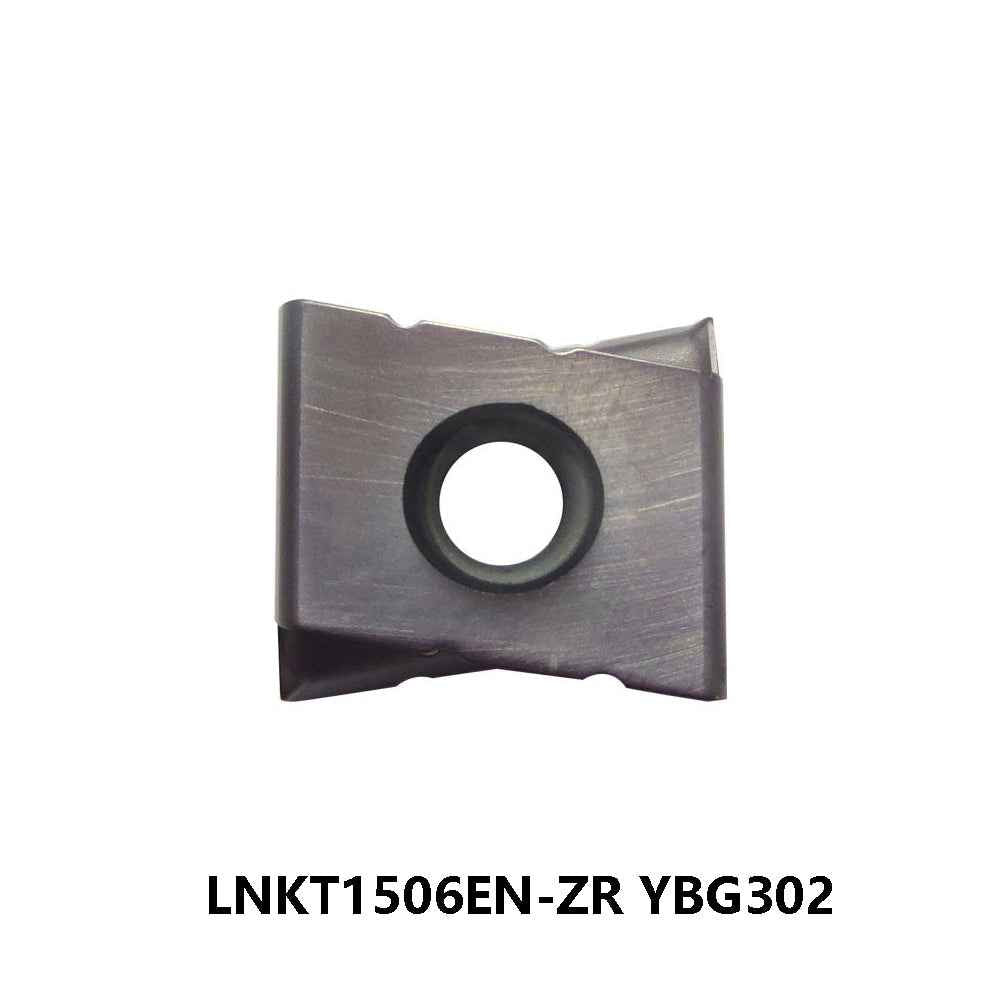

PVD Coating:YBG302,Designation:LNKT2510-ZR YBG302  Turning Milling tool Dimension (mm):L:25,I.W:18,S:9.525,ød:5.5 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition

PVD Coating:YBG302,Designation:LNKT1506EN-ZR YBG302 Turning Milling tool Dimension (mm):L:15.875,I.W:14,S:6.35,ød:4.6 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition

CVD Coating:YBC302,Designation:MPHT120408-DM YBC302 Turning Milling tool Dimension (mm):ØI.C:12.7,L:12.7,s:4.76,ød:5.56,r:0.8 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless...

CVD Coating:YBM253,Designation:MPHT080305-DM YBM253 Turning Milling tool Dimension (mm):ØI.C:8.3,L:8.3,s:3.18,ød:3.4,r:0.5 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless...

CVD Coating:YBM251,Designation:MPHT080305-DM YBM251 Turning Milling tool Dimension (mm):ØI.C:8.3,L:8.3,s:3.18,ød:3.4,r:0.5 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless...

PVD Coating:YBG302,Designation:MPHT080305-DM YBG302 Turning Milling tool Dimension (mm):ØI.C:8.3,L:8.3,s:3.18,ød:3.4,r:0.5 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless steel....

PVD Coating:YBG205 ,Designation:MPHT080305-DM YBG205  Turning Milling tool Dimension (mm):ØI.C:8.3,L:8.3,s:3.18,ød:3.4,r:0.5 Workpiece Material:Steel:Ideal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, DM:Main chip breaker for medium machining with continuous or interrupted cut of...

CVD Coating:YBD252,Designation:MPHT080305-DM YBD252 Turning Milling tool Dimension (mm):ØI.C:8.3,L:8.3,s:3.18,ød:3.4,r:0.5 Workpiece Material:Cast iron:Unfavorable Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless steel.

CVD Coating:YBM253,Designation:MPHT060304-DM YBM253 Turning Milling tool Dimension (mm):ØI.C:6.35,L:6.35,s:3.18,ød:2.8,r:0.4 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless...

PVD Coating:YBG302,Designation:MPHT060304-DM YBG302 Turning Milling tool Dimension (mm):ØI.C:6.35,L:6.35,s:3.18,ød:2.8,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless steel....

CVD Coating:YBD252,Designation:MPHT060304-DM YBD252 Turning Milling tool Dimension (mm):ØI.C:6.35,L:6.35,s:3.18,ød:2.8,r:0.4 Workpiece Material:Cast iron:Unfavorable Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless steel.

CVD Coating:YBC302,Designation:MPHT060304-DM YBC302 Turning Milling tool Dimension (mm):ØI.C:6.35,L:6.35,s:3.18,ød:2.8,r:0.4 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless...

CVD Coating:YBC302,Designation:ONHU060408-PF YBC302 Turning Milling tool Dimension (mm):L:6.58,ØI.C:15.875,s:4.76,ød:4.4,r:0.83 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

CVD Coating:YBC302,Designation:PNEG110512R-PR YBC302 Turning Milling tool Dimension (mm):L:7.5,ØI.C:15.875,S:5.56,ød:4.64,bs:1.4,ap:7.5 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

CVD Coating:YBC302,Designation:PNEG110512R-PM YBC302 Turning Milling tool Dimension (mm):L:7.5,ØI.C:15.875,S:5.56,ød:4.64,bs:1.4,ap:7.5 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

CVD Coating:YBC302,Designation:PNEG110512R-PF YBC302 Turning Milling tool Dimension (mm):L:7.5,ØI.C:15.875,S:5.56,ød:4.64,bs:1.4,ap:7.5 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

CVD Coating:YBD152,Designation:PNEG110512R-CR YBD152 Turning Milling tool Dimension (mm):L:5.4,ØI.C:15.875,S:5.56,ød:4.64,bs:1.6,ap:5 Workpiece Material:Cast iron:Unfavorable Machining Condition

CVD Coating:YBD152,Designation:PNEG110512R-CR YBD152 Turning Milling tool Dimension (mm):L:5.4,ØI.C:15.875,S:5.56,ød:4.64,bs:1.6,ap:5 Workpiece Material:Cast iron:Normal Machining Condition

CVD Coating:YBM253,Designation:PNEG110512R-CM YBM253 Turning Milling tool Dimension (mm):L:5.4,ØI.C:15.875,S:5.56,ød:4.64,bs:1.6,ap:5 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

CVD Coating:YBD152,Designation:PNEG110512R-CM YBD152 Turning Milling tool Dimension (mm):L:5.4,ØI.C:15.875,S:5.56,ød:4.64,bs:1.6,ap:5 Workpiece Material:Cast iron:Normal Machining Condition

CVD Coating:YBD152,Designation:PNEG110512R-CF YBD152 Turning Milling tool Dimension (mm):L:5.4,ØI.C:15.875,S:5.56,ød:4.64,bs:1.6,ap:5 Workpiece Material:Cast iron:Normal Machining Condition

CVD Coating:YBM253,Designation:ONHU08T624R-GM YBM253 Turning Milling tool Dimension (mm):L:6.38,ØI.C:20.2,S:6.3,ød:5.3,r:2.4 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

CVD Coating:YBD152,Designation:ONHU08T624R-GM YBD152 Turning Milling tool Dimension (mm):L:6.38,ØI.C:20.2,S:6.3,ød:5.3,r:2.4 Workpiece Material:Cast iron:Normal Machining Condition

CVD Coating:YBG202,Designation:ONHU08T508-PM YBM351 Turning Milling tool Dimension (mm):L:8.37,ØI.C:20.2,S:5.77,ød:5.3,r:0.83 Workpiece Material:Steel:Unfavorable Machining Condition,Stainless Steel:Unfavorable Machining Condition PM:Universal chip breaker with stable cutting edge. Suitable for medium machining also with interrupted cut especially...

CVD Coating:YBM253,Designation:ONHU08T508-PF YBM253 Turning Milling tool Dimension (mm):L:8.37,ØI.C:20.2,S:5.77,ød:5.3,r:0.83 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

PVD Coating:YBG202,Designation:ONHU08T508-PF YBG202 Turning Milling tool Dimension (mm):L:8.37,ØI.C:20.2,S:5.77,ød:5.3,r:0.83 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition

CVD Coating:YBM351,Designation:ONHU060408-PM YBM351 Turning Milling tool Dimension (mm):L:6.58,ØI.C:15.875,s:4.76,ød:4.4,r:0.83 Workpiece Material:Steel:Unfavorable Machining Condition,Stainless Steel:Unfavorable Machining Condition Universal chip breaker with stable cutting edge. Suitable for medium machining also with interrupted cut especially for...

CVD Coating:YBM253 ,Designation:ONHU060408-PM YBM253  Turning Milling tool Dimension (mm):L:6.58,ØI.C:15.875,s:4.76,ød:4.4,r:0.83 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition Universal chip breaker with stable cutting edge. Suitable for medium machining also with interrupted cut especially...

PVD Coating:YBG205,Designation:ONHU060408-PM YBG205 Turning Milling tool Dimension (mm):L:6.58,ØI.C:15.875,s:4.76,ød:4.4,r:0.83 Workpiece Material:Steel:Ideal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, Universal chip breaker with stable cutting edge. Suitable for medium machining also with interrupted...

CVD Coating:YBD152,Designation:ONHU060408-PM YBD152 Turning Milling tool Dimension (mm):L:6.58,ØI.C:15.875,s:4.76,ød:4.4,r:0.83 Workpiece Material:Cast iron:Normal Machining Condition PM:Universal chip breaker with stable cutting edge. Suitable for medium machining also with interrupted cut especially for...

CVD Coating:YBC302 ,Designation:ONHU060408-PF YBC302 Turning Milling tool Dimension (mm):L:6.58,ØI.C:15.875,s:4.76,ød:4.4,r:0.83 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

Carbide:YD101,Designation:OFKT05T3-LH YD101 Turning Milling tool Dimension (mm):L:5.26,ØI.C:12.7,s:3.97,ød:4.4,r:0.5 Workpiece Material:Non-ferrite material:Normal Machining Conditio LH:Chip breaker for aluminum alloy and non ferrous metal machining G tolerance insert with large rake angle, surface...

CVD Coating:YBM253,Designation:OFKT05T3-DM YBM253 Turning Milling tool Dimension (mm):L:5.26,ØI.C:12.7,s:3.97,ød:4.4,r:0.5 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless...

PVD Coating:YBG302 ,Designation:OFKT05T3-DM YBG302  Turning Milling tool Dimension (mm):L:5.26,ØI.C:12.7,s:3.97,ød:4.4,r:0.5 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless steel....

PVD Coating:YBG202,Designation:OFKT05T3-DM YBG202 Turning Milling tool Dimension (mm):L:5.26,ØI.C:12.7,s:3.97,ød:4.4,r:0.5 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of...

PVD Coating:YBG102,Designation:OFKT05T3-DM YBG102 Turning Milling tool Dimension (mm):L:5.26,ØI.C:12.7,s:3.97,ød:4.4,r:0.5 Workpiece Material:Cast iron:Ideal Machining Condition,Heat-resistant steel:Ideal Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and...

CVD Coating:YBD152,Designation:OFKT05T3-DM YBD152 Turning Milling tool Dimension (mm):L:5.26,ØI.C:12.7,s:3.97,ød:4.4,r:0.5 Workpiece Material:Cast iron:Normal Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless steel.

PVD Coating:YB9320,Designation:OFKT05T3-DM YB9320 Turning Milling tool Dimension (mm):L:5.26,ØI.C:12.7,s:3.97,ød:4.4,r:0.5 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, DM:Main chip breaker for medium machining with continuous or interrupted cut of steel...

PVD Coating:YBG302,Designation:OFKR0704-DM YBG302 Turning Milling tool Dimension (mm):L:7.45,ØI.C:17.94,s:4.76,ød:4.76,r:0.8 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless steel....

PVD Coating:YBM253,Designation:MPHT120408-DM YBM253 Turning Milling tool Dimension (mm):ØI.C:12.7,L:12.7,s:4.76,ød:5.56,r:0.8 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless...

PVD Coating:YBG302,Designation:MPHT120408-DM YBG302 Turning Milling tool Dimension (mm):ØI.C:12.7,L:12.7,s:4.76,ød:5.56,r:0.8 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless steel....

PVD Coating:YBG202 ,Designation:MPHT120408-DM YBG202  Turning Milling tool Dimension (mm):ØI.C:12.7,L:12.7,s:4.76,ød:5.56,r:0.8 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of...

CVD Coating:YBD252,Designation:MPHT120408-DM YBD252 Turning Milling tool Dimension (mm):ØI.C:12.7,L:12.7,s:4.76,ød:5.56,r:0.8 Workpiece Material:Cast iron:Unfavorable Machining Condition DM:Main chip breaker for medium machining with continuous or interrupted cut of steel and stainless steel.
