Positive Turning Insert ZCC.CT

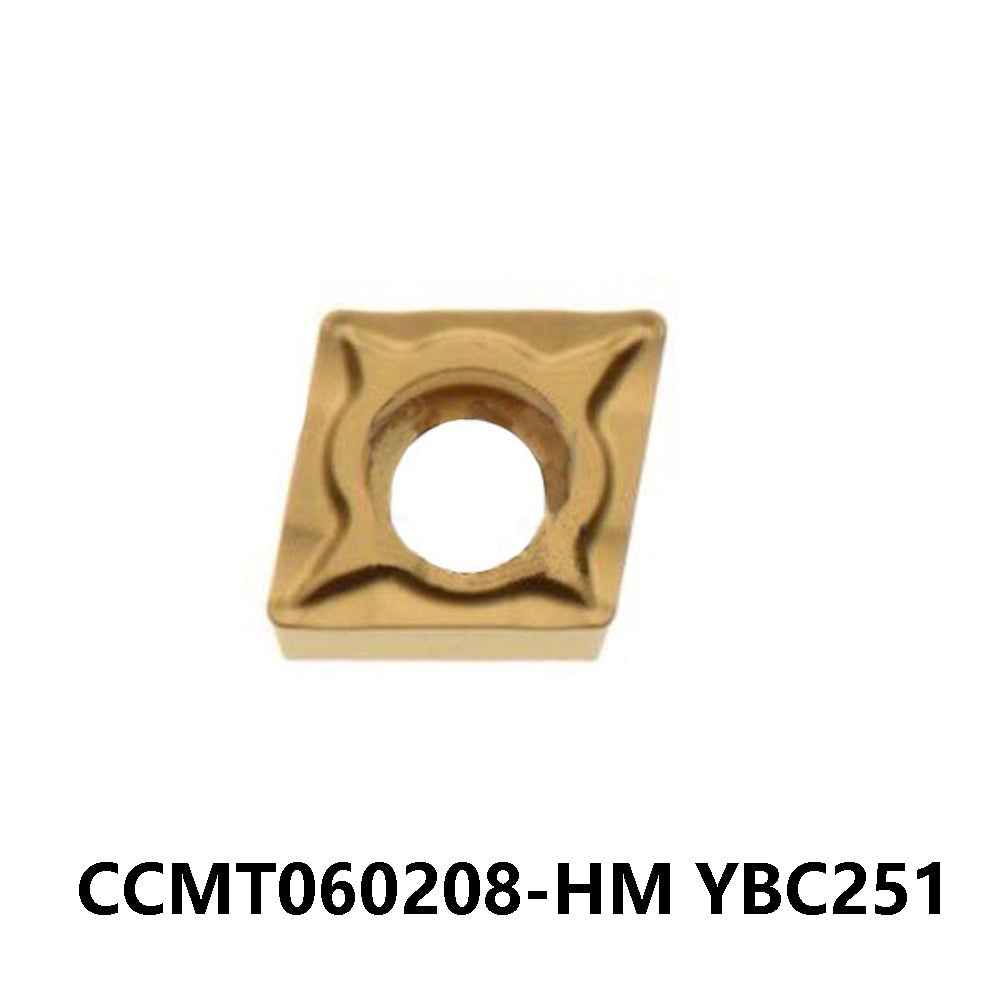

PVD Coating:YBG202 ,Designation:CCMT060208-HM YBG202 CCMT2(1.5)2-HM YBG202 .Dimension (mm):L:6.4, I.C:6.35, S:2.38, d:2.8, r:0.8, Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD152,Designation:CCMT060208-HM YBD152 CCMT2(1.5)2-HM YBD152.Dimension (mm):L:6.4, I.C:6.35, S:2.38, d:2.8, r:0.8, Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD102,Designation:CCMT060208-HM YBD102 CCMT2(1.5)2-HM YBD102.Dimension (mm):L:6.4, I.C:6.35, S:2.38, d:2.8, r:0.8, Workpiece Material:Cast iron:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252 ,Designation:CCMT060208-HM YBC252 CCMT2(1.5)2-HM YBC252 .Dimension (mm):L:6.4, I.C:6.35, S:2.38, d:2.8, r:0.8, Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152,Designation:CCMT060208-HM YBC152 CCMT2(1.5)2-HM YBC152.Dimension (mm):L:6.4, I.C:6.35, S:2.38, d:2.8, r:0.8, Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:CCMT060208-HM YBC251 CCMT2(1.5)2-HM YBC251.Dimension (mm):L:6.4,I.C:6.35,S:2.38,d:2.8,r:0.8, Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC151,Designation:CCMT120408-HM YBC151 CCMT432-HM YBC151 Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.8, Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for internal...

CVD Coating:YBM251,Designation:CCMT120404-HM YBM251 CCMT431-HM YBM251 Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for...

CVD Coating:YBC151,Designation:CCMT120404-HM YBC151 CCMT431-HM YBC151 Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for internal...

CVD Coating:YBC151,Designation:CCMT120404-53 YBC151 CCMT431-53 YBC151 Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:CCMT120404-53 YBC251 CCMT431-53 YBC251 Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD151,Designation:CCMT120404-53 YBD151 CCMT431-53 YBD151 Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Turning Cemented carbide and cermet Inserts

CVD Coating:YBM251,Designation:CCMT120404-53 YBM251 CCMT431-53 YBM251 Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC151,Designation:CCMT120404-HF YBC151 CCMT431-HF YBC151 Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts HF:Chip breaker for finishing and semi-finishing of steel and cast iron. Especially for internal...

CVD Coating:YBM251,Designation:CCMT09T308-HR YBM251 CCMT3(2.5)2-HR YBM251 Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8, Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts HR:Chip breaker with strong cutting edge for light to medium rough machining...

CVD Coating:YBM251,Designation:CCMT09T308-HM YBM251 CCMT3(2.5)2-HM YBM251 Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8, Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for...

CVD Coating:YBD151,Designation:CCMT09T308-HM YBD151 CCMT3(2.5)2-HM YBD151 Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8, Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for internal and external turning.

CVD Coating:YBC151,Designation:CCMT09T308-HM YBC151 CCMT3(2.5)2-HM YBC151 Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8, Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for internal...

CVD Coating:YB6315,Designation:CCMT120408-AHF YB6315 CCMT432-AHF YB6315.Dimension (mm):L:12.9, I.C:12.7, S:4.76, d:5.56, r:0.8, Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YB6315,Designation:CCMT120404-AHF YB6315 CCMT431-AHF YB6315.Dimension (mm):L:12.9, I.C:12.7, S:4.76, d:5.56, r:0.4, Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YB6315,Designation:CCMT09T308-HM YB6315 CCMT3(2.5)2-HM YB6315.Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YB9320,Designation:CCMT120408-AHF YB9320 CCMT432-AHF YB9320.Dimension (mm):L:12.9, I.C:12.7, S:4.76, d:5.56, r:0.8, Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, Turning Cemented carbide and cermet Inserts

PVD Coating:YB9320,Designation:CCMT120404-AHF YB9320 CCMT431-AHF YB9320.Dimension (mm):L:12.9, I.C:12.7, S:4.76, d:5.56, r:0.4, Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:CCMT120408-HM YBC251 CCMT432-HM YBC251.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.8, Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG205 ,Designation:CCMT120408-EM YBG205  CCMT432-EM YBG205 .Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.8, Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202  ,Designation:CCMT120408-EM YBG202 CCMT432-EM YBG202.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.8, Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG205,Designation:CCMT120408-EF YBG205 CCMT432-EF YBG205.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.8, Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YB7315,Designation:CCMT120404-TC YB7315 CCMT431-TC YB7315.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202,Designation:CCMT120404-HM YBG202 CCMT431-HM YBG202 .Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD152,Designation:CCMT120404-HM YBD152 CCMT431-HM YBD152.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD102 ,Designation:CCMT120404-HM YBD102  CCMT431-HM YBD102 .Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Cast iron:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC351,Designation:CCMT120404-HM YBC351 CCMT431-HM YBC351.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Unfavorable Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:CCMT120404-HM YBC252 CCMT431-HM YBC252.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:CCMT120404-HM YBC251 CCMT431-HM YBC251.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152,Designation:CCMT120404-HM YBC152 CCMT431-HM YBC152 Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for internal...

CVD Coating:YBC252,Designation:CCMT120404-HF YBC252 CCMT431-HF YBC252.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:CCMT120404-HF YBC251 CCMT431-HF YBC251.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152,Designation:CCMT120404-HF YBC152 CCMT431-HF YBC152 Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts HF:Chip breaker for finishing and semi-finishing of steel and cast iron. Especially for internal...

PVD Coating:YBG205 ,Designation:CCMT120404-EM YBG205 CCMT431-EM YBG205.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202  ,Designation:CCMT120404-EM YBG202 CCMT431-EM YBG202.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG205,Designation:CCMT120404-EF YBG205 CCMT431-EF YBG205.Dimension (mm):L:12.9,I.C:12.7,S:4.76,d:5.56,r:0.4, Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YB7315 ,Designation:CCMT09T308-TC YB7315 CCMT3(2.5)2-TC YB7315 .Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8, Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD152,Designation:CCMT09T308-HR YBD152 CCMT3(2.5)2-HR YBD152.Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8, Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC351,Designation:CCMT09T308-HR YBC351 CCMT3(2.5)2-HR YBC351.Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8, Workpiece Material:Steel:Unfavorable Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:CCMT09T308-HR YBC251 CCMT3(2.5)2-HR YBC251.Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8, Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:CCMT09T308-HR YBC252  CCMT3(2.5)2-HR YBC252.Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8, Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202,Designation:CCMT09T308-HM YBG202 CCMT3(2.5)2-HM YBG202.Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8, Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD152,Designation:CCMT09T308-HM YBD152 CCMT3(2.5)2-HM YBD152.Dimension (mm):L:9.7,I.C:9.525,S:3.97,d:4.4,r:0.8, Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts
