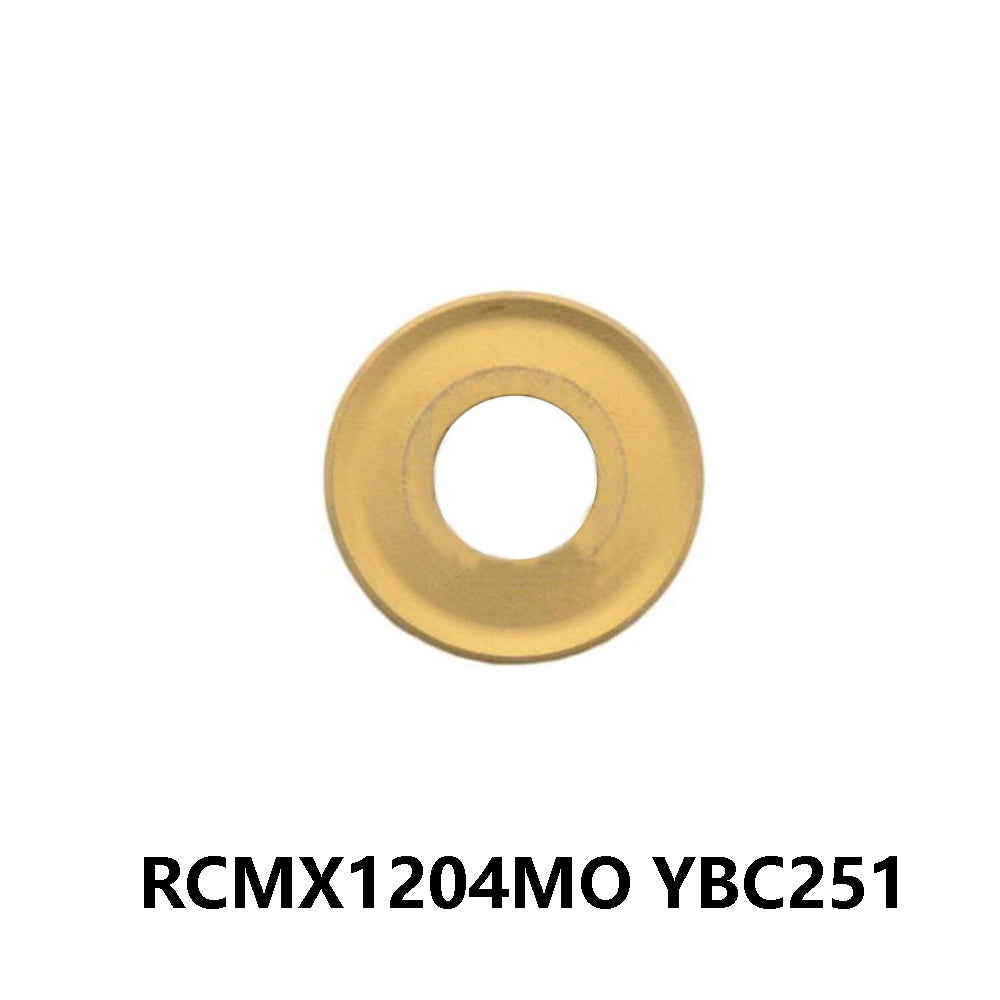

RCMX1204MO YBC251 (10pcs) ZCC.CT
RCMX1003MO YBC251 (10pcs) ZCC.CT
RCMX0803MO YBC251 (10pcs) ZCC.CT
RCMT2507MO YBC251 (10pcs) ZCC.CT
RCMT1606MO YBD052 (10pcs) ZCC.CT
RCMT1606MO YBC252 (10pcs) ZCC.CT
RCMT1606MO YBC251 (10pcs) ZCC.CT
RCMT1204MO YBD102 (10pcs) ZCC.CT
RCMT1204MO YBC252 (10pcs) ZCC.CT
RCMT1204MO YBC251 (10pcs) ZCC.CT
RCMT10T3MO YBC252 (10pcs) ZCC.CT
RCMT10T3MO YBC251 (10pcs) ZCC.CT
RCMT0803MO YBD102 (10pcs) ZCC.CT
RCMT0803MO YBC252 (10pcs) ZCC.CT
ZCC.CT RPMW1003MO YBG205 Round Carbide Milling Inserts for Stainless Steel & PVD
ZCC.CT RPEW1003MO YBG205 Round Carbide Milling Inserts for Stainless Steel
ZCC.CT RDKW1605MO YBG212 Round Carbide Milling Inserts for Hardened Steel
RDKW2006MO YBC301 (10pcs) ZCC.CT
RDKW1605MO YBM351 (10pcs) ZCC.CT
RDKW1605MO YBC302 (10pcs) ZCC.CT
RDKW1204MO YBM351 (10pcs) ZCC.CT
RDKW1204MO YBG302 (10pcs) ZCC.CT
RDKW1204MO YBG205 (10pcs) ZCC.CT
ZCC.CT RDKW1204MO YBG202 Round Carbide Milling Inserts - Made in China
RDKW1204MO YBG102 (10pcs) ZCC.CT
RDKW1204MO YBC302 (10pcs) ZCC.CT
RDKW1204MO YBC301 (10pcs) ZCC.CT
RDKW10T3MO YBM351 (10pcs) ZCC.CT
RDKW0803MO YBM351 (10pcs) ZCC.CT
RDKW0803MO YBG202 (10pcs) ZCC.CT
RDKW0803MO YBC301 (10pcs) ZCC.CT
RNMG120400 YBC251 (10pcs) ZCC.CT
ZCC.CT SCMT09T304-HM YBM251 Carbide Turning Inserts for Stainless Steel
ZCC.CT SCMT09T308-HM YBC151 Carbide Turning Inserts for Steel Machining
SCGX09T308-LH YD101 (10pcs) ZCC.CT
SCGX120408-LC YD101 (10pcs) ZCC.CT
SCGX09T304-LC YD101 (10pcs ZCC.CT
SCMT09T308-HM YBC252 (10pcs) ZCC.CT
SCMT09T308-HM YBC251 (10pcs) ZCC.CT
SCMT09T308-HM YBC152 (10pcs) ZCC.CT
SCMT09T308-EM YBG205 (10pcs) ZCC.CT
SCMT09T308-EF YBG202 (10pcs) ZCC.CT
SCMT09T308-AHF YB9320 (10pcs) ZCC.CT
SCMT09T308-AHF YB6315 (10pcs) ZCC.CT
SCMT09T304-HR YBD152 (10pcs) ZCC.CT
SCMT09T304-HR YBC251 (10pcs) ZCC.CT
SCMT09T304-HM YBD152 (10pcs) ZCC.CT
SCMT09T304-HM YBD102 (10pcs) ZCC.CT
About ZCC·CT Positive Turning Inserts
ZCC·CT (ZCC Cutting Tools) positive turning inserts are precision ground carbide tools for external and face turning on CNC lathes. The "positive" geometry means a 7° clearance angle on the insert, which makes them ideal for finishing, semi-finishing, and profiling on small to medium lathes where low cutting forces and a sharp cutting edge are critical. ZCC·CT's positive turning line covers the full spectrum of workpiece materials: steel, stainless, cast iron, aluminum, and high-temperature alloys.
Every ZCC·CT insert on this page is genuine OEM product from ZCC Cutting Tools (a wholly-owned subsidiary of ZCC, founded 2003 in Zhuzhou, China). ZCC·CT's proprietary grade families — YBC (CVD-coated steel), YBD (CVD-coated cast iron), YBG (PVD universal), YBM (PVD stainless), YD (uncoated aluminum), and YNG (cermet precision) — set the standard for Chinese carbide inserts at 30-50% below Japanese or European OEM pricing. CNCHome-Beyond is an authorized ZCC·CT distributor; orders placed before 3 PM China time ship same-day from our Hangzhou warehouse with DHL/UPS/FedEx express delivery in 3-7 business days.
ZCC·CT Positive Insert Geometries at a Glance
| Series | IC Size | Type | Operation | Best For |
|---|---|---|---|---|
| CCMT | 06 / 09T3 / 1204 | 80° rhombic, with hole, positive 7° | External + face turning, profiling | Most popular positive geometry — 67 SKUs in steel/stainless/cast iron |
| CCGT | 09T3 | 80° rhombic, cermet, polished top | Precision finishing at high speed | Cermet edge for steel mirror finishing |
| CCGX | 06 / 09T3 / 1204 | 80° rhombic, lapped (polished) | Aluminum + non-ferrous turning | Uncoated YD101 — sharp edge for non-sticking on aluminum |
| DCMT | 0702 | 55° rhombic, with hole, positive 7° | Profiling, facing, light turning | Tighter approach angle for slender shafts |
| SCMT | 09T3 | Square 90°, with hole, positive 7° | Shoulder + facing | General 90° shoulder turning |
| SPGT | 0502 | Square 90°, with hole, positive rake | Aluminum profiling | Sharp edge positive rake for aluminum |
| TCMT | 2204 (22 = 12.7mm IC) | 60° triangle, with hole, positive 7° | Profiling, light facing | Compact geometry for tight spaces |
| TNMG | 1604 | 60° triangle, negative (mis-categorized) | Universal roughing | Negative insert in positive collection — see YBG205 for steel |
Need to compare with other brand positive turning geometries? See our complete Insert Grade Cross-Reference Tool and SKU Cross-Reference for direct equivalents between ZCC·CT, Sandvik, Kennametal, Iscar, Walter, Tungaloy, Mitsubishi, Kyocera, and KORLOY.
Popular ZCC·CT Grades for Positive Turning
| Grade | Coating / Material | Workpiece | Recommended Speed | Best For |
|---|---|---|---|---|
| YBC151 | CVD (TiCN + Al2O3) — finishing layer | Steel (P05-P20) | 180-280 m/min | Steel high-speed finishing, mirror surface |
| YBC152 | CVD (TiCN + Al2O3) — finishing+ | Steel (P10-P25) | 160-260 m/min | Steel finishing with light interruption |
| YBC251 | CVD (TiCN + Al2O3) — workhorse | Steel (P15-P35) | 120-220 m/min | Steel general purpose (workhorse) — 50% of ZCC·CT inserts |
| YBC252 | CVD (TiCN + thick Al2O3) — roughing | Steel (P20-P40) | 100-180 m/min | Steel roughing with depth of cut up to 6mm |
| YBC351 | CVD (thick coating) | Steel (P25-P45) | 80-150 m/min | Steel heavy roughing, low-speed high-feed |
| YBD102 | CVD (K-grade) | Cast iron (K05-K20) | 150-300 m/min | Cast iron universal, gray + ductile iron |
| YBD152 | CVD (K-grade thick) | Cast iron (K15-K30) | 120-250 m/min | Cast iron heavy roughing, interrupted cuts |
| YBG102 | PVD (TiAlN) | Universal (P10-P30, M10-M25, K10-K25) | 100-220 m/min | Universal finishing, sharp edge for low cutting force |
| YBG202 | PVD (TiAlN, tougher) | Universal (P15-P35, M15-M30) | 100-200 m/min | Universal semi-finishing, balanced wear + toughness |
| YBG205 | PVD (Al-rich TiAlN) | Universal (P20-P40) | 80-180 m/min | Universal roughing, high-temperature alloys |
| YBM151 | PVD (Cr-rich for stainless) | Stainless (M05-M20) | 100-180 m/min | Stainless steel finishing, sharp edge for work-hardening resistance |
| YBM251 | PVD (Cr-rich) | Stainless (M15-M30) | 80-160 m/min | Stainless steel general purpose (workhorse for M-class) |
| YBM253 | PVD (tough) | Stainless heavy (M25-M40) | 60-140 m/min | Stainless heavy roughing, low-speed with high feed |
| YD101 | Uncoated carbide (sharp edge) | Aluminum (N05-N25), non-ferrous | 300-1000 m/min | Aluminum turning, brass, copper — sharp edge for non-sticking |
| YNG151C | Cermet (uncoated TiCN) | Steel precision (P05-P15) | 200-350 m/min | Steel mirror-finish turning, longer tool life than carbide |
| YB6315 / YB7315 / YB9320 | PVD (general) | Steel + stainless universal | 100-220 m/min | Generic PVD workhorse grades for mixed-material shops |
About ZCC·CT grade naming: ZCC·CT uses a 4-character grade code that decodes logically. The first letter identifies the base material family: Y = tungsten carbide base, all ZCC·CT inserts start with Y. The second letter identifies the coating family: B = CVD (thick coating for steel/cast iron), G = PVD (thin coating for universal), M = PVD-optimized for stainless, D = uncoated (for aluminum/non-ferrous), N = cermet. The third digit indicates the application range: 1 = finishing, 2 = general, 3 = roughing. The fourth digit is the version number. So YBC251 = tungsten carbide + CVD + general + version 1 (the workhorse steel grade).
ZCC·CT Chip-Breaker Reference (12+ Variants)
ZCC·CT's chip-breaker system is one of the most comprehensive in the Chinese carbide industry. Each chip-breaker is optimized for a specific feed and depth-of-cut range:
| Chip-Breaker | Application | Feed | Depth of Cut | Best With Grade |
|---|---|---|---|---|
| 53 (flat top) | Finishing, sharp edge, no chip control | 0.05-0.15 mm/rev | 0.3-1.0 mm | YBC151 / YBM151 / YD101 |
| EF (extra fine) | Precision finishing, low cutting force | 0.05-0.12 mm/rev | 0.3-0.8 mm | YBG102 / YBG202 / YBM151 |
| SF (super finishing) | Mirror finish, cermet applications | 0.03-0.10 mm/rev | 0.2-0.5 mm | YNG151C (cermet) |
| HF (heavy feed / medium) | General purpose, balanced cut | 0.10-0.25 mm/rev | 0.8-3.0 mm | YBC251 / YBC252 / YBG202 |
| HM (heavy medium) | Semi-finishing, medium chip control | 0.15-0.30 mm/rev | 1.0-3.5 mm | YBC251 / YBC252 / YBD102 / YBG202 |
| EM (extra medium) | Light roughing, smooth chip flow | 0.15-0.30 mm/rev | 1.5-3.5 mm | YBG202 / YBG205 / YBM251 |
| HR (heavy roughing) | Roughing, deep cuts | 0.20-0.40 mm/rev | 2.0-5.0 mm | YBC251 / YBC252 / YBD152 |
| AHF (advanced heavy feed) | High-feed roughing, profiling | 0.25-0.50 mm/rev | 2.0-5.0 mm | YBC252 / YBC351 / YBG205 |
| LH (left hand polished) | Aluminum with high surface finish | 0.10-0.30 mm/rev | 0.5-3.0 mm | YD101 (uncoated for aluminum) |
| LC (left hand cast iron) | Cast iron with high surface finish | 0.10-0.30 mm/rev | 0.5-3.0 mm | YD101 / YBD102 |
| TC (tough cut) | Interrupted cuts, tougher edge | 0.15-0.35 mm/rev | 1.5-4.0 mm | YB6315 / YB7315 / YB9320 |
| PM (profile milling) | Profile + light milling (SPGT only) | 0.05-0.20 mm/rev | 0.3-2.0 mm | YBG212 (PVD for high-temp alloys) |
How to Choose a ZCC·CT Positive Insert
Step 1: Match the geometry to the operation. For 80% of steel turning applications, choose CCMT (80° rhombic, with hole, positive 7° clearance). For precision finishing at high speed, choose CCGT (cermet edge). For aluminum turning, choose CCGX (lapped uncoated). For profiling with a tighter approach angle, choose DCMT (55°). For 90° shoulder turning, choose SCMT.
Step 2: Match the grade to the workpiece material. Steel → YBC251 (workhorse) or YBC151 (finishing). Stainless/high-temp → YBM251. Cast iron → YBD102 (gray/ductile iron). Aluminum → YD101 (uncoated). Precision steel finishing → YNG151C cermet.
Step 3: Match the chip-breaker to feed and depth of cut. Finishing (0.05-0.15 mm/rev) → 53 / EF / SF. General (0.10-0.25 mm/rev) → HF / HM / EM. Roughing (0.20-0.50 mm/rev) → HR / AHF. Use the table above to find the right combination.
Step 4: Match the insert to the tool holder. ZCC·CT CCMT fits PCLNR/L, DCLNR/L, MCLNR/L, MWLNR/L tool holders (standard 80° positive rake). CCGX aluminum fits the same holders with sharper top clamp. CCMT internal boring bars use S...PCLNR/L, S...MCLNR/L, etc. CNCHome-Beyond carries compatible aftermarket holders at 30-50% below OEM — see our turning tool holder guide and Insert Holder Selector.
Compatible Tool Holders (Standard Positive 7° Rake)
ZCC·CT positive inserts fit the following CNCHome-Beyond tool holder families (all ISO 5610 standard, drop-in compatible with ZCC·CT OEM holders):
- Double-Clamp External Holders (PCLNR/L) — for heavy CCMT roughing
- Multi-Lock External Holders (MCLNR/L) — for general CCMT medium cutting
- Lever-Lock (P-Type) External Holders — for quick-change high-mix production
- Screw-Clamp Boring Bars (S...PCLNR/L) — for internal turning with positive inserts
Need help matching inserts to holders? Use our Insert Holder Selector Tool for a guided 3-step match, or contact us for a custom tool holder quote.
Cross-Brand Equivalents to ZCC·CT Positive Turning
ZCC·CT positive insert geometries are dimensionally interchangeable with other major brands. Direct equivalents:
| ZCC·CT | Mitsubishi | Sandvik | Kennametal | Iscar |
|---|---|---|---|---|
| CCMT 120408 HM YBC251 | CCMT 120408-HM US7020 | CCMT 120408-PM GC4325 | CCMT 120408-HM KC7315 | CCMT 120408-HM IC8150 |
| CCMT 09T304 HM YBM251 | CCMT 09T304-HM US7020 | CCMT 09T304-PM GC4325 | CCMT 09T304-HM KCP25 | CCMT 09T304-HM IC8250 |
| CCGX 09T304 LH YD101 | CCGT 09T304-LH US7020 | CCGT 09T304-AL H10 | CCGT 09T304-LH K313 | CCGT 09T304-LH IC20 |
| CCGT 09T304 SF YNG151C | CCGT 09T304-PF US7020 | CCGT 09T304-AL GC1525 | CCGT 09T304-MF KCK20 | CCGT 09T304-PF IC9080 |
Looking for a Mitsubishi or Sandvik equivalent at lower cost? See Mitsubishi positive turning inserts or Kyocera positive turning inserts for direct alternatives. Use our Insert Grade Cross-Reference Tool for grade-to-grade equivalents across 17+ brands.
Featured Bestsellers (16 SKUs across all geometries)
Browse a representative selection from our 100-SKU catalog below, organized by geometry. All featured inserts are in stock and ship same-day from Hangzhou. Click any part number to view detailed specs, grade composition, and recommended cutting parameters.
CCMT Series — 80° Rhombic Positive (Featured: 8 SKUs)
The CCMT is the most popular positive turning geometry globally. ZCC·CT's CCMT family covers all 3 IC sizes (06, 09T3, 1204) and 6 grade families (YBC/YBD/YBG/YBM/YB). The 7° positive clearance angle reduces cutting forces for small lathes and finishing operations.
- CCMT120408-AHF YB6315 - 12mm IC, AHF heavy feed, PVD steel/stainless workhorse
- CCMT120408-HM YBM251 - 12mm IC, HM semi-finishing, PVD stainless (note: title says YBC151, variant)
- CCMT120404-HM YBM251 - 12mm IC (0.4mm nose), HM, PVD stainless
- CCMT09T304-53 YBM251 - 9.5mm IC, 53 flat top, PVD stainless (workhorse M-grade)
- CCMT09T304-HM YBC151 - 9.5mm IC, HM, CVD steel finishing
- CCMT09T304-HM YBM151 - 9.5mm IC, HM, PVD stainless finishing
- CCMT09T304-HF YBD151 - 9.5mm IC, HF, CVD cast iron
- CCMT060204-HM YBD102 - 6mm IC, HM, CVD cast iron (small lathe)
CCGX Series — Lapped Uncoated for Aluminum (Featured: 4 SKUs)
The CCGX is ZCC·CT's lapped (polished) positive insert with uncoated YD101 grade. The polished top surface prevents aluminum from sticking to the cutting edge, making it ideal for high-speed aluminum turning on automotive and aerospace parts.
- CCGX09T304-LH YD101 - 9.5mm IC, LH polished, uncoated aluminum
- CCGX09T302-LH YD101 - 9.5mm IC (0.2mm nose), LH, uncoated aluminum
- CCGX120404-LH YBG102 - 12mm IC (0.4mm nose), LH polished, PVD universal
- CCGX120408-LH YD101 - 12mm IC, LH polished, uncoated aluminum
DCMT / SCMT / TCMT / SPGT / CCGT / TNMG (Featured: 4 SKUs)
Other positive geometries for specialized applications: DCMT for 55° profiling, SCMT for 90° shoulder, TCMT for 60° triangle, SPGT for aluminum profiling, CCGT for cermet precision, TNMG (mis-categorized negative).
- DCMT070204-HM YBC251 - 55° rhombic, HM, CVD steel
- SCMT09T304 YBC251 - 90° square shoulder, CVD steel
- TCMT220408-HR YBC251 - 60° triangle, HR roughing, CVD steel
- CCGT09T304-SF YNG151C - 80° cermet, SF super finish, steel mirror
Frequently Asked Questions
What is the difference between YBC and YBG grades in ZCC·CT?
YBC is ZCC·CT's CVD-coated (thick coating, TiCN + Al2O3) family optimized for steel and cast iron. The thick coating provides exceptional wear resistance for high-volume production. YBG is ZCC·CT's PVD-coated (thin coating, TiAlN) family optimized for universal applications including stainless steel and high-temperature alloys. The thin PVD coating keeps the cutting edge sharp for low cutting force on tough materials. Use YBC for steel and cast iron; use YBG for stainless, high-temp alloys, and mixed-material work.
What is YD101 grade and what is it used for?
YD101 is ZCC·CT's uncoated carbide grade specifically designed for aluminum and non-ferrous metals. The "D" stands for "Diamond-like" polish — YD101 inserts are precision-lapped on the top surface to a mirror finish, which prevents aluminum from sticking (built-up edge) during turning. The sharp cutting edge (no coating to round it over) allows aggressive feeds at 300-1000 m/min on aluminum. YD101 is the workhorse for automotive and aerospace aluminum parts.
What is the equivalent of ZCC·CT CCMT 120408 HM YBC251 in other brands?
ZCC·CT CCMT 120408 HM YBC251 is the industry-standard positive turning insert (12mm IC, 0.8mm nose, 7° positive clearance, HM chip-breaker, CVD steel workhorse grade). Direct equivalents: Sandvik CCMT 120408-PM GC4325, Kennametal CCMT 120408-HM KC7315, Iscar CCMT 120408-HM IC8150, Mitsubishi CCMT 120408-HM US7020, Kyocera CCMT 120408HQ CA6525. All are dimensionally interchangeable on the same external turning tool holder. For grade cross-reference, see our Insert Grade Cross-Reference Tool.
What is the difference between ZCC and ZCC·CT?
ZCC (Zhuzhou Cemented Carbide) is the parent company, founded in 1954 in Zhuzhou, Hunan Province, China. ZCC is one of the largest tungsten carbide producers in the world and supplies cemented carbide blanks to many insert manufacturers. ZCC·CT (ZCC Cutting Tools) is a wholly-owned subsidiary founded in 2003, focused on indexable carbide inserts for turning, milling, grooving, threading, and drilling. ZCC·CT uses the same high-quality carbide substrate as the parent (ZCC powder metallurgy) but adds its own coating technologies (YBC/YBG/YBM families). Today ZCC·CT is one of the top 5 Chinese carbide insert brands.
What is the difference between CCGT (cermet) and CCMT (carbide) inserts?
CCGT uses a cermet cutting edge (ceramic + metal composite, typically TiCN-based) which is harder and more wear-resistant than carbide at high temperatures. Cermet allows higher cutting speeds (up to 350 m/min on steel) and produces a mirror surface finish, but is more brittle and not suitable for interrupted cuts or hard materials. CCMT uses a tungsten carbide cutting edge with CVD or PVD coating, which is tougher but wears faster at high temperatures. Use CCGT for steel precision finishing in stable conditions; use CCMT for general purpose with interruption.
What is the minimum order quantity for ZCC·CT positive turning inserts?
Sample orders start at 1 piece for grade validation. Standard production orders are 10-50 pieces per item. Bulk pricing tiers: 2-9 pieces 6% off, 10+ pieces 12% off (auto-applied at checkout). For custom grades or chip-breakers not in our standard catalog, MOQ is 200 pieces with 6-8 week lead time from ZCC·CT Zhuzhou. See our warranty and return policy for details on grade validation samples.
Related ZCC·CT Collections
Order ZCC·CT Positive Turning Inserts or Request a Quote
Need a grade, chip-breaker, or geometry not in our standard catalog? Send us a part number, grade spec, and quantity — we will return a formal quote within 24 hours. Custom ZCC·CT geometries available on 6-8 week lead time from Zhuzhou.
CNCHome-Beyond — Authorized ZCC·CT Distributor. Genuine OEM product, full lot traceability, same-day dispatch from Hangzhou for orders placed before 3 PM China time.
Want to know more about ZCC·CT grades, CVD/PVD coating, or chip-breaker selection? Read our CNC tooling knowledge base or check the complete cross-reference tool for grade-to-grade equivalents.
