Positive Turning Insert ZCC.CT

PVD Coating:YBG302,Designation:SPMT120430 YBG302 Turning Milling tool Dimension (mm):r:3.0,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition

CVD Coating:YBM253,Designation:SPMT120408-PM YBM253 Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

PVD Coating:YBG302,Designation:SPMT120408-PM YBG302 Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition

PVD Coating:YBG205,Designation:SPMT120408-PM YBG205 Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece Material:Steel:Ideal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition

CVD Coating:YBC302,Designation:SPMT120408-PM YBC302 Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

PVD Coating:YBG302,Designation:SPMT120408-KM YBG302 Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition

CVD Coating:YBM253,Designation:SPMT120408-HT-1 YBM253 Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

PVD Coating:YBG212,Designation:SPMT120408-HT-1 YBG212 Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11°

PVD Coating:YBG302,Designation:SPMT120408-HT YBG302 Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition

PVD Coating:YBG202,Designation:SPMT120408-HT YBG202  Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition

CVD Coating:YBM251,Designation:SPMT120408 YBM251 Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

PVD Coating:YBG302,Designation:SPMT120408 YBG302 Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition

CVD Coating:YBC301,Designation:SPMT120408 YBC301 Turning Milling tool Dimension (mm):r:0.8,L:12.7,ØI.C:12.70,S:4.76,ød:5.5,α:11° Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

CVD Coating:YBM251,Designation:SPMT09T308-HT YBM251 Turning Milling tool Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

CVD Coating:YBD252,Designation:SPMT09T308-HT YBD252 Turning Milling tool Workpiece Material:Cast iron:Unfavorable Machining Condition

CVD Coating:YBC301,Designation:SPMT09T308 YBC301 Turning Milling tool Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

CVD Coating:YBC251,Designation:SPMR120308 YBC251  Turning Milling tool Dimension (mm):L:12.7,ØI.C:12.7,S:3.18,r:0.8 Workpiece Material:Steel:Normal Machining Condition

CVD Coating:YBC251,Designation:SPMR120304 YBC251 Turning Milling tool Dimension (mm):L:12.7,ØI.C:12.7,S:3.18,r:0.4 Workpiece Material:Steel:Normal Machining Condition

PVD Coating:YBG202,Designation:SPKT1204EDR YBG202 Turning Milling tool Dimension (mm):L:12.7,ØI.C:12.7,S:4.76,ød:5.56,α:11° Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition

PVD Coating:YBM253,Designation:SPKR1504EDR-GM YBM253 Turning Milling tool Dimension (mm):L:15.875,ØI.C:15.875,S:4.76,be:1,bs:1.4 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

PVD Coating:YBG202,Designation:SPKR1504EDR-GM YBG202 Turning Milling tool Dimension (mm):L:15.875,ØI.C:15.875,S:4.76,be:1,bs:1.4 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition

CVD Coating:YBM251,Designation:SPKR1203EDR-GM YBM251 Turning Milling tool Dimension (mm):L:12.7,ØI.C:12.7,S:3.18,be:1,bs:1.4 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

Carbide:YD201,Designation:SPKN1504EDTKR YD201 Turning Milling tool Dimension (mm):L:15.875,ØI.C:15.875,S:4.76,be:1,bs:1.4 Workpiece Material:Cast iron:Unfavorable Machining Condition,Non-ferrite material:Unfavorable Machining Condition

CVD Coating:YBD152,Designation:TCMT090208-HR YBD152 TCMT1.8(1.5)2-HR YBD152 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.8 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152,Designation:TCMT090208-HM YBC251 TCMT1.8(1.5)2-HM YBC152 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.8 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD152  ,Designation:TCMT090204-HM YBD152   TCMT1.8(1.5)1-HM YBD152 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.4 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TCMT090204-HM YBC252 TCMT1.8(1.5)1-HM YBC252 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152,Designation:TCMT090204-HM YBC251 TCMT1.8(1.5)1-HM YBC152 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152,Designation:TCMT090204-HM YBC152 TCMT1.8(1.5)1-HM YBC152 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.4 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating :YBC251,Designation:TCMT090204-HF YBC251 TCGX1.8(1.5)1-HF YBC251 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating :YBC251,Designation:TCMT090204-HF YBC251 TCGX1.8(1.5)1-HF YBC251 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating :YBG205,Designation:TCMT090204-EM YBG205 TCMT1.8(1.5)1-EM YBG205 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating :YBG202,Designation:TCMT090204-EM YBG202 TCMT1.8(1.5)1-EM YBG202 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating :YBG205,Designation:TCMT090204-EF YBG205 TCMT1.8(1.5)1-EF YBG205 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating :YBC251,Designation:TCMT090202-HF YBC251 TCMT1.8(1.5)0-HF YBC251 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.2 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating :YBG202,Designation:TCMT090202-EF YBG202 TCMT1.8(1.5)0-EF YBG202 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.2 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

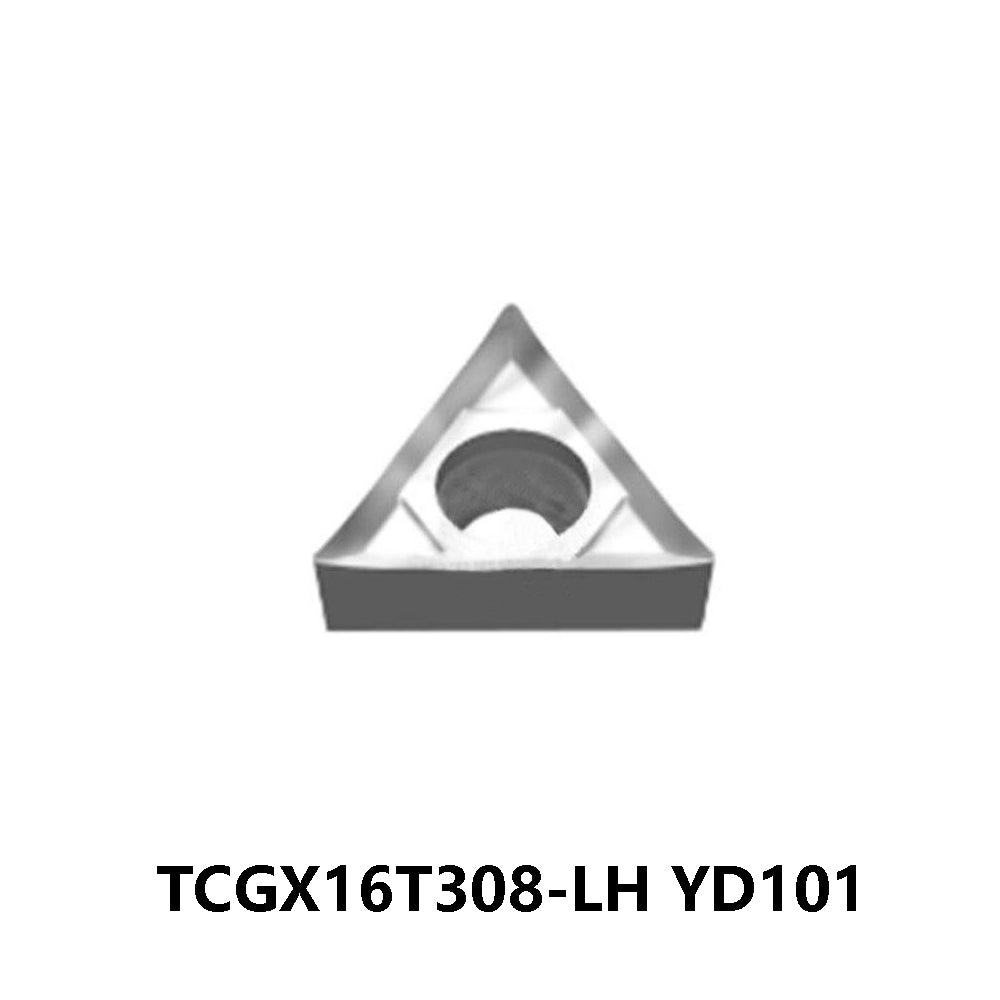

Uncoated Carbide:YD101 ,Designation:TCGX16T308-LC YD101 TCGX3(2.5)2-LC YD101 Dimension (mm):L:16.5,I.C:9.525,S:3.97d:4.4,r:0.8 Workpiece Material:Non-ferrite material:Ideal Machining Condition,Heat-resistant steel:Ideal Machining Condition, Turning Cemented carbide and cermet Inserts

Uncoated Carbide:YD101 ,Designation:TCGX16T308-LC YD101 TCGX3(2.5)2-LC YD101 Dimension (mm):L:16.5,I.C:9.525,S:3.97d:4.4,r:0.8 Workpiece Material:Non-ferrite material:Ideal Machining Condition,Heat-resistant steel:Ideal Machining Condition, Turning Cemented carbide and cermet Inserts

Uncoated Carbide:YD101 ,Designation:TCGX16T304-LH YD101 TCGX3(2.5)1-LH YD101 Dimension (mm):L:16.5,I.C:9.525,S:3.97d:4.4,r:0.4 Workpiece Material:Non-ferrite material:Ideal Machining Condition,Heat-resistant steel:Ideal Machining Condition, Turning Cemented carbide and cermet Inserts

Uncoated Carbide:YD101 ,Designation:TCGX16T304-LC YD101 TCGX3(2.5)1-LC YD101 Dimension (mm):L:16.5,I.C:9.525,S:3.97d:4.4,r:0.4 Workpiece Material:Non-ferrite material:Ideal Machining Condition,Heat-resistant steel:Ideal Machining Condition, Turning Cemented carbide and cermet Inserts

Uncoated Carbide:YD101 ,Designation:TCGX110208-LH YD101 TCGX2(1.5)2-LH YD101 Dimension (mm):L:11,I.C:6.35,S:2.38d:2.8,r:0.8 Workpiece Material:Non-ferrite material:Ideal Machining Condition,Heat-resistant steel:Ideal Machining Condition, Turning Cemented carbide and cermet Inserts

Uncoated Carbide:YD101 ,Designation:TCGX110204-LC YD101 TCGX2(1.5)1-LC YD101 Dimension (mm):L:11,I.C:6.35,S:2.38d:2.8,r:0.4 Workpiece Material:Non-ferrite material:Ideal Machining Condition,Heat-resistant steel:Ideal Machining Condition, Turning Cemented carbide and cermet Inserts

Uncoated Carbide:YD101 ,Designation:TCGX110202-LH YD101 TCGX2(1.5)0-LH YD101 Dimension (mm):L:11,I.C:6.35,S:2.38d:2.8,r:0.2 Workpiece Material:Non-ferrite material:Ideal Machining Condition,Heat-resistant steel:Ideal Machining Condition, Turning Cemented carbide and cermet Inserts

Uncoated Carbide:YD101 ,Designation:TCGX090204-LC YD101  TCGX1.8(1.5)1-LC YD101Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.4 Workpiece Material:Non-ferrite material:Ideal Machining Condition,Heat-resistant steel:Ideal Machining Condition, Turning Cemented carbide and cermet Inserts

Cermet:YNG151,Designation:TBGH060104L YNG151 Dimension (mm):L:6.4,I.C:3.97,S:1.59,d:2.2,r:0.4 Workpiece Material:Steel:Ideal Machining Condition,Stainless Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG102,Designation:TBGH060104L YBG102  Dimension (mm):L:6.4,I.C:3.97,S:1.59,d:2.2,r:0.4 Workpiece Material:Stainless Steel:Ideal Machining Condition,Non-ferrite material:Ideal Machining Condition,Heat-resistant steel:Ideal Machining Condition. Turning Cemented carbide and cermet Inserts

Cermet:YNG151,Designation:TBGH060102L YNG151 Dimension (mm):L:6.4,I.C:3.97,S:1.59,d:2.2,r:0.2 Workpiece Material:Steel:Ideal Machining Condition,Stainless Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG102,Designation:TBGH060102L YBG102 Dimension (mm):L:6.4,I.C:3.97,S:1.59,d:2.2,r:0.2 Workpiece Material:Stainless Steel:Ideal Machining Condition,Non-ferrite material:Ideal Machining Condition,Heat-resistant steel:Ideal Machining Condition. Turning Cemented carbide and cermet Inserts
