Positive Turning Insert ZCC.CT

PVD Coating:YBG205,Designation:TCMT110202-EF YBG205 TCMT2(1.5)0-EF YBG205 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.2 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202,Designation:TCMT110202-EF YBG202 TCMT2(1.5)0-EF YBG202 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.2 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD151,Designation:TCMT16T308-HM YBD151 TCMT3(2.5)2-HM YBD151 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for...

CVD Coating:YBM351,Designation:TCMT16T308-HM YBM351 TCMT3(2.5)2-HM YBM351 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for internal and external turning.

CVD Coating:YBM251,Designation:TCMT16T308-HM YBM251 TCMT3(2.5)2-HM YBM251 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for...

CVD Coating:YBC151,Designation:TCMT220408 YBC151 TCMT432 YBC151 Dimension (mm):L:22,I.C:12.7,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBM251,Designation:TCMT220408-HR YBM251 TCMT432-HR YBM251 Dimension (mm):L:22,I.C:12.7,S:3.97,d:4.4,r:0.8 Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts HR:Chip breaker with strong cutting edge for light to medium rough machining...

CVD Coating:YBD152,Designation:TCMT220408-HR YBD152 TCMT432-HR YBD152 Dimension (mm):L:22,I.C:12.7,S:3.97,d:4.4,r:0.8 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts HR:Chip breaker with strong cutting edge for light to medium rough machining...

CVD Coating:YBC351,Designation:TCMT220408-HR YBC351 TCMT432-HR YBC351 Dimension (mm):L:22,I.C:12.7,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Unfavorable Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TCMT220408-HR YBC252 TCMT432-HR YBC252 Dimension (mm):L:22,I.C:12.7,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT220408-HR YBC251 TCMT432-HR YBC251 Dimension (mm):L:22,I.C:12.7,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT220408 YBC251 TCMT432 YBC251 Dimension (mm):L:22,I.C:12.7,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC351,Designation:TCMT16T312-HM YBC351 TCMT3(2.5)2-HR YBC351 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Unfavorable Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD152,Designation:TCMT16T308-HR YBD152 TCMT3(2.5)2-HR YBD152 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC351,Designation:TCMT16T308-HR YBC351 TCMT3(2.5)2-HR YBC351 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Unfavorable Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TCMT16T308-HR YBC252 TCMT3(2.5)2-HR YBC252 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT16T308-HR YBC251   TCMT3(2.5)2-HR YBC251 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152,Designation:TCMT16T308-HR YBC152 TCMT3(2.5)2-HR YBC152 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202,Designation:TCMT16T308-HM YBG202 TCMT3(2.5)2-HM YBG202 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD152 ,Designation:TCMT16T308-HM YBD152  TCMT3(2.5)2-HM YBD152 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC351,Designation:TCMT16T308-HM YBC351 TCMT3(2.5)2-HM YBC351 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TCMT16T308-HM YBC252 TCMT3(2.5)2-HM YBC252 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT16T308-HM YBC251 TCMT3(2.5)2-HM YBC251 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152,Designation:TCMT16T308-HM YBC152 TCMT3(2.5)2-HM YBC152 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBM253,Designation:TCMT16T308-EM YBM253 TCMT3(2.5)2-EM YBM253 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, Turning Cemented carbide and cermet Inserts

PVD Coating:YBG205,Designation:TCMT16T308-EM YBG205 TCMT3(2.5)2-EM YBG205 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, Turning Cemented carbide and cermet Inserts

PVD Coating:YBG205,Designation:TNMG160404L-ZC YBG205 TNMG331L-ZC YBG205 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, Turning Cemented carbide and cermet Inserts

PVD Coating:YBG205,Designation:TNMG160404R-ZC YBG205 TNMG331R-ZC YBG205 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TNMG160404R-ZC YBC252 TNMG331R-ZC YBC252 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBM251,Designation:TNMG160408-DM YBM251 TNMG332-DM YBM251 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:0.8 Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts DM:Main chip breaker for medium machining with continuous or interrupted cut of...

CVD Coating:YBM251,Designation:TNMG160412 YBM251 TNMG333 YBM251 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD151,Designation:TNMG160412 YBD151 TNMG333 YBD151 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Turning Cemented carbide and cermet Inserts

CVD Coating:YBD252,Designation:TNMG160408-PM YBD252 TNMG332-PM YBD252 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:0.8 Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152,Designation:TNMG220404-DM YBC152 TNMG431-DM YBC152 Dimension (mm):L:22,I.C:12.7,S:4.76,d:5.16,r:0.4 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC351,Designation:TNMG220404 YBC351 TNMG431 YBC351 Dimension (mm):L:22,I.C:12.7,S:4.76,d:5.16,r:0.4 Workpiece Material:Steel:Unfavorable Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TNMG220404 YBC251 TNMG431 YBC251 Dimension (mm):L:22,I.C:12.7,S:4.76,d:5.16,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YB6315,Designation:TNMG160412-ZM YB6315 TNMG333-ZM YB6315 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YB7315,Designation:TNMG160412-TC YB7315  TNMG333-TC YB7315 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TNMG160412-PM YBC252 TNMG333-PM YBC252 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TNMG160412-PM YBC251  TNMG333-PM YBC251 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

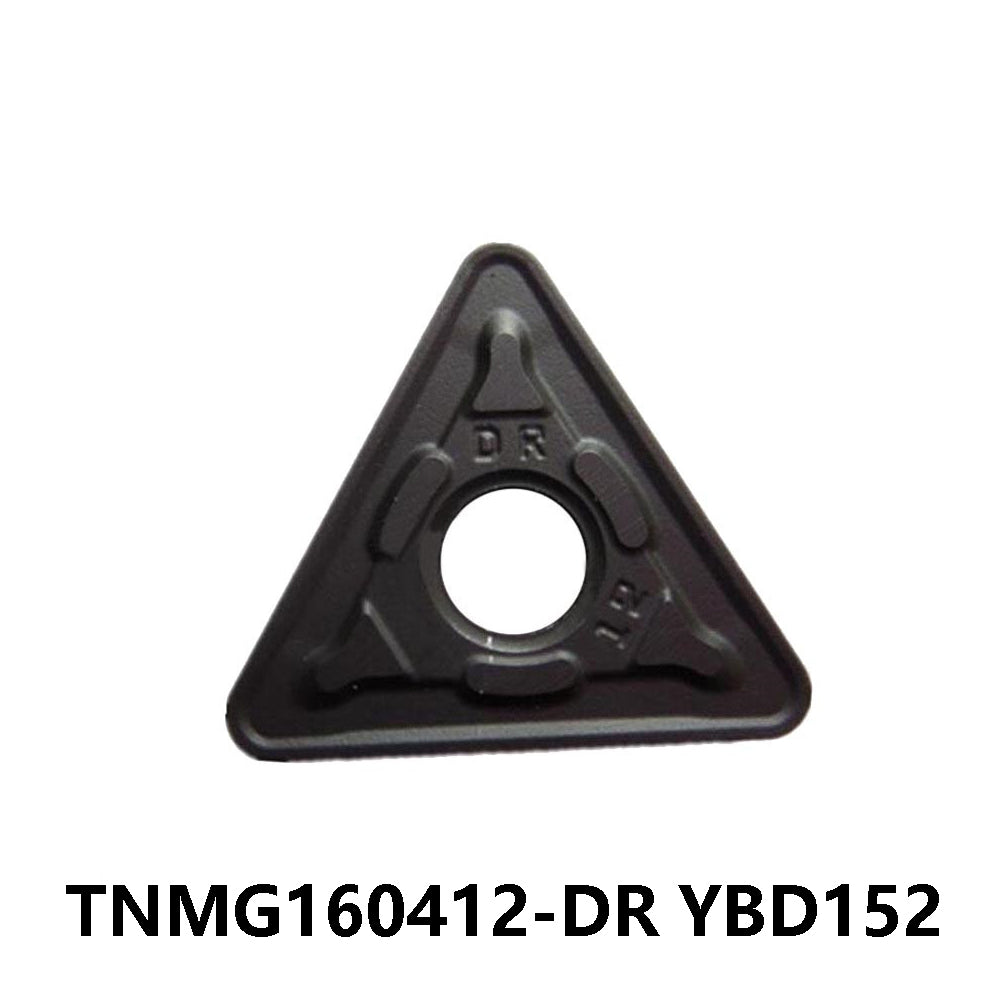

CVD Coating:YBD152,Designation:TNMG160412-DR YBD152 TNMG333-DR YBD152 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD102,Designation:TNMG160412-DR YBD102 TNMG333-DR YBD102 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Cast iron:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TNMG160412-DR YBC252 TNMG333-DR YBC252 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152,Designation:TNMG160412-DR YBC152 TNMG333-DR YBC152 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TNMG160412-DM YBC252 TNMG333-DM YBC252 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152,Designation:TNMG160412-DM YBC152 TNMG333-DM YBC152 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YB9320 ,Designation:TNMG160412-ADF YB9320 TNMG333-ADF YB9320 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TNMG160412 YBC251 TNMG333 YBC251 Dimension (mm):L:16.5,I.C:9.525,S:4.76,d:3.81,r:1.2 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts
