Positive Turning Insert ZCC.CT

CVD Coating:YBM251,Designation:TCMT110208-52 YBM251 TCMT2(1.5)2-52 YBM251 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.8 Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT110208-52 YBC251 TCMT2(1.5)2-52 YBC251 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.8 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD151,Designation:TCMT110204-52 YBD151 TCMT2(1.5)1-52 YBD151 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT110204-52 YBC251  TCMT2(1.5)1-52 YBC251 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBM251,Designation:TCMT110204-HM YBM251 TCMT2(1.5)1-HM YBM251 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for...

CVD Coating:YBD102,Designation:TCMT110204-HM YBD102 TCMT2(1.5)1-HM YBD102 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Cast iron:Ideal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for...

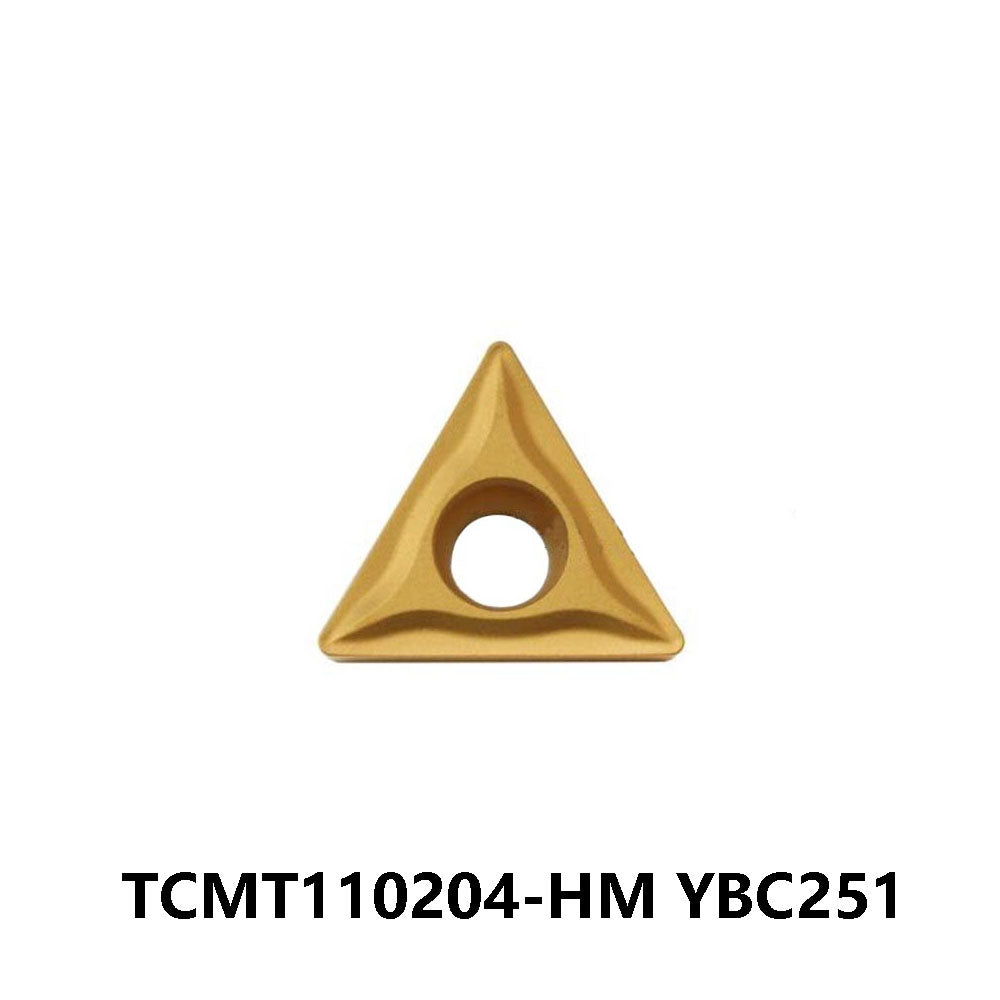

CVD Coating:YBC151,Designation:TCMT110204-HM YBC151 TCMT2(1.5)1-HM YBC151 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for internal...

CVD Coating:YBC251,Designation:TCMT16T304-52 YBC251 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBM251,Designation:TCMT16T308-52 YBM251 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD151,Designation:TCMT16T308-52 YBD151 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC351,Designation:TCMT16T308-52 YBC351 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Unfavorable Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT16T308-52 YBC251 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Stainless Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202,Designation:TCMT16T308-EM YBG202 TCMT3(2.5)2-EM YBG202 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, Turning Cemented carbide and cermet Inserts

PVD Coating:YBG205,Designation:TCMT16T308-EF YBG205  TCMT3(2.5)2-EF YBG205 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, Turning Cemented carbide and cermet Inserts

PVD Coating:YB9320,Designation:TCMT16T308-AHF YB9320 TCMT3(2.5)2-AHF YB9320 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition, Turning Cemented carbide and cermet Inserts

CVD Coating:YB6315 ,Designation:TCMT16T308-AHF YB6315 TCMT3(2.5)2-AHF YB6315 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD102,Designation:TCMT16T304-HR YBD102 TCMT3(2.5)1-HR YBD102 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Cast iron:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBM251,Designation:TCMT16T304-HR YBC251 TCMT3(2.5)1-HR YBC251 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202,Designation:TCMT16T304-HM YBG202 TCMT3(2.5)1-HM YBG202 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD152,Designation:TCMT16T304-HM YBD152 TCMT3(2.5)1-HM YBD152 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD102,Designation:TCMT16T304-HM YBD102 TCMT3(2.5)1-HM YBD102 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Cast iron:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC351,Designation:TCMT16T304-HM YBC351 TCMT3(2.5)1-HM YBC351 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Steel:Unfavorable Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TCMT16T304-HM YBC252 TCMT3(2.5)1-HM YBC252Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT16T304-HM YBC251 TCMT3(2.5)1-HM YBC251 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251 ,Designation:TCMT16T304-HF YBC251 TCMT3(2.5)1-HF YBC251 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG205,Designation:TCMT16T304-EM YBG205 TCMT3(2.5)1-EM YBG205 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202,Designation:TCMT16T304-EM YBG202 TCMT3(2.5)1-EM YBG202 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YB9320,Designation:TCMT16T304-AHF YB9320 TCMT3(2.5)1-AHF YB9320 Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YB6315,Designation:TCMT16T304-AHF YB6315 TCMT3(2.5)1-AHF YB6315Dimension (mm):L:16.5,I.C:9.525,S:3.97,d:4.4,r:0.4 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD152,Designation:TCMT110208-HM YBD152 TCMT2(1.5)2-HM YBD152 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.8 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TCMT110208-HM YBC252 TCMT2(1.5)2-HM YBC252 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT110208-HM YBC251 TCMT2(1.5)2-HM YBC251 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.8 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD102,Designation:TCMT110208-HF YBD102 TCMT2(1.5)2-HF YBD102 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TCMT110208-HF YBC252 TCMT2(1.5)2-HF YBC252 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.8 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC152 ,Designation:TCMT110208-HF YBC152 TCMT2(1.5)2-HF YBC152 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.8 Workpiece Material:Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG205 ,Designation:TCMT110208-EM YBG205 TCMT2(1.5)2-EM YBG205 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.8 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202 ,Designation:TCMT110204-HM YBG202  TCMT2(1.5)1-HM YBG202 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBD102,Designation:TCMT110204-HM YBD102 TCMT2(1.5)1-HM YBD102 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Cast iron:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC252,Designation:TCMT110204-HM YBC252 TCMT2(1.5)1-HM YBC252 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT110204-HM YBC251 TCMT2(1.5)1-HM YBC251 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts HM:Chip breaker for medium machining of steel or cast iron. Suitable for internal...

CVD Coating:YBD152,Designation:TCMT110204-HF YBD152 TCMT2(1.5)1-HF YBD152 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Cast iron:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT110204-HF YBC251 TCMT2(1.5)1-HF YBC251 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBM153,Designation:TCMT110204-EM YBM153 TCMT2(1.5)1-EM YBM153 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Stainless Steel:Ideal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG205,Designation:TCMT110204-EM YBG205 TCMT2(1.5)1-EM YBG205 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG205,Designation:TCMT110204-EF YBG205 TCMT2(1.5)1-EF YBG205 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202,Designation:TCMT110202-EF YBG204 TCMT2(1.5)1-EF YBG202 Dimension (mm):L:9.6,I.C:5.56,S:2.38d:2.5,r:0.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

PVD Coating:YBG202,Designation:TCMT110202-HF YBG202 TCMT2(1.5)0-HF YBG202 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.2 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts

CVD Coating:YBC251,Designation:TCMT110202-HF YBC251 TCMT2(1.5)0-HF YBC251 Dimension (mm):L:11,I.C:6.35,S:2.38,d:2.8,r:0.2 Workpiece Material:Steel:Normal Machining Condition Turning Cemented carbide and cermet Inserts
